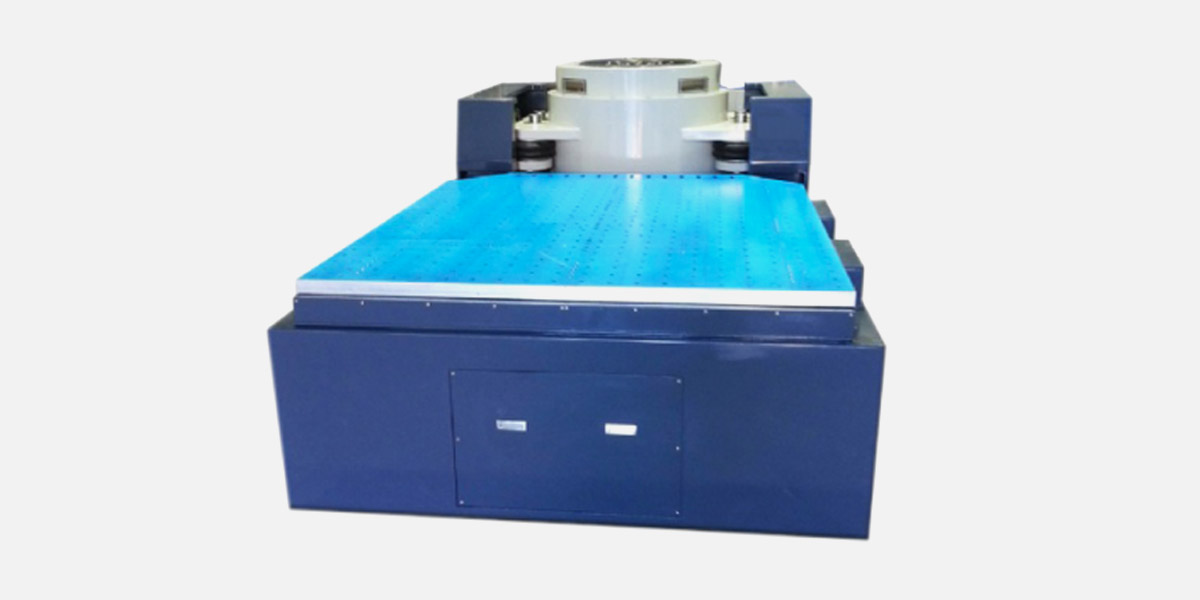

VS-16000VH
- Vibration test equipment: test by the digital controller to control the power amplifier to drive 160KN vibrator, the test object locked & fixed to the top of the table, and through the vertical platform or horizontal slide undergo separately up and down, back & forth, around the three-axis vibration test.
- For The composite vibration test, we can proceed with our unique technology and design of the combination of temperature box and vibration machine.
Machine capability:
| Maximum force: | 160KN |
| Frequency range: | 1-2100Hz |
| Maximum displacement: | 76mm (peak) |
| Maximum speed: | 2.0m / s (peak) |
| Maximum acceleration: | 100G |
| Vertical platform: | 150 * 150cm 600Kg (Customize Acceptable) |
| Resonant frequency: | 500Hz |
| Horizontal slide: | 200 * 200cm 690Kg (Customize Acceptable) |
| Resonant frequency: | 2000Hz |
| Vertical Shaker Dimension : | 221 (W) * 156 (D) * 162 (H) cm |
