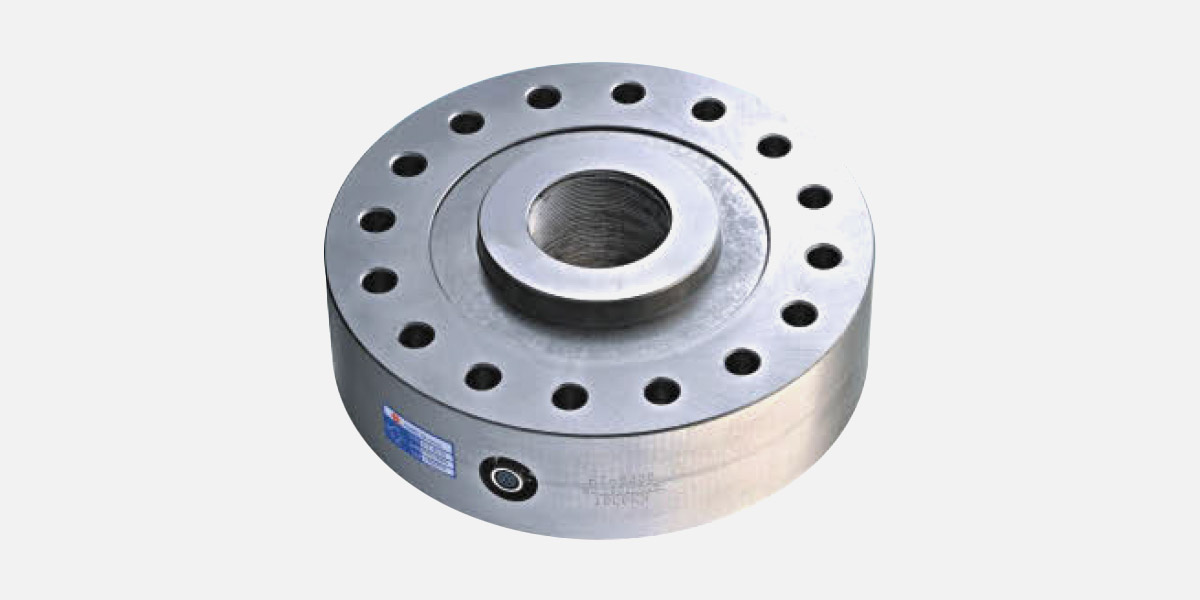

Low Profile High Precision Load Cell

• With excellent linearity owing to small change of structural area.
• With excellent symmetry, available to withstand a large eccentric of lateral load.
• Low profile, with low deflection under load
• With even heat compensatio
• Material with high stiffness and low deflection, with better overload protection
• Tensile and compression type
• Wide range of measuring 5 ~ 5000 kN
